High-carbon carbon spring steel 54SiCr6

Spring Steel 54SiCr6 and Its Use in Sword and Knife Making

The steel 54SiCr6, also known as ČSN 14.260, belongs to the category of spring steels, which are characterized by high strength, fatigue resistance, and the ability to return to their original shape after deformation. These qualities are crucial for producing high-quality swords and knives, where toughness and resistance to wear and dynamic stress are essential.

Chemical Composition and Mechanical Properties

Steel 54SiCr6 has the following chemical composition:

• Carbon (C): 0.51–0.59%
• Silicon (Si): 1.20–1.60%
• Manganese (Mn): 0.50–0.80%
• Chromium (Cr): 0.50–0.80%
• Phosphorus (P): max 0.025%
• Sulfur (S): max 0.025%

The high silicon (Si) content increases the steel’s strength and flexibility, while chromium (Cr) enhances hardness and wear resistance. This combination of elements ensures excellent mechanical properties, ideal for applications requiring flexibility and the ability to hold an edge.

Heat Treatment and Hardening

A key aspect of processing 54SiCr6 steel is proper heat treatment, which significantly impacts the final product's properties. The heat treatment process consists of several steps:

1. Annealing: The steel is heated to a temperature of 750–800°C and then slowly cooled in the furnace. This process removes internal stress and improves the steel’s machinability before further processing.
2. Hardening: The steel is heated to a temperature of 830–870°C and then rapidly cooled in oil or water. This quick cooling ensures the transformation of austenite into martensite, achieving high hardness.
3. Tempering: Immediately after hardening, tempering is performed at 400–500°C, reducing the steel’s brittleness and increasing its toughness. This step is essential to achieve an optimal combination of hardness and flexibility.

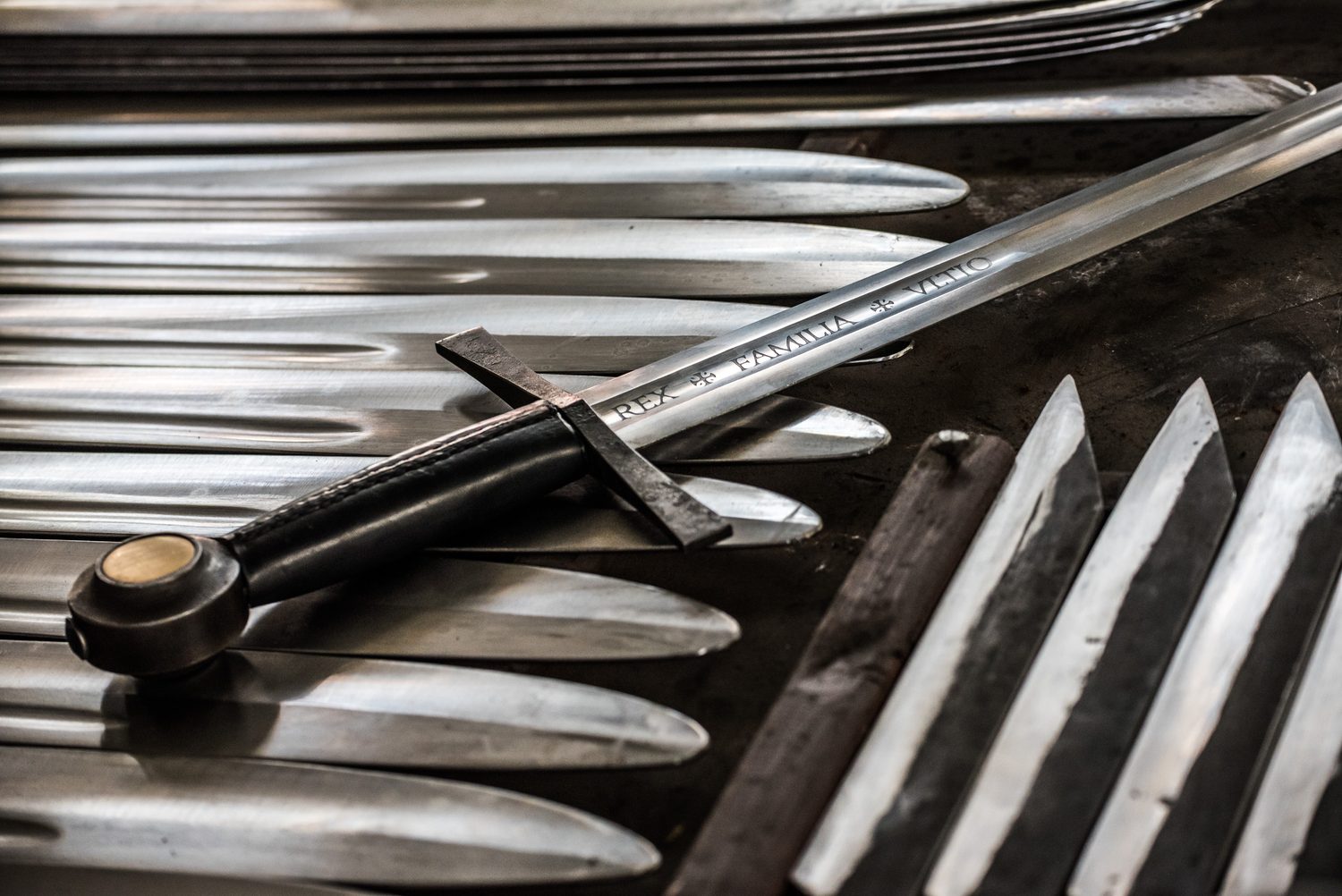

Manufacturing Swords and Knives from 54SiCr6 Steel

Sword Making

Swords made from 54SiCr6 steel are highly valued for their ability to withstand high dynamic loads, which is crucial in combat use. The steel’s flexibility allows the sword to absorb impacts without permanent deformation, while its high edge hardness ensures long-term edge retention and effective cutting performance. The manufacturing process includes hot forging to shape the blade, followed by heat treatment to grant the final mechanical properties.

The swords are then ground and polished to achieve the desired shape and surface finish. Thanks to their flexibility and durability, these swords are ideal for historical reenactments, martial arts, and collecting purposes.

Knife Making

Spring steel 54SiCr6 is also commonly used in knife making, for both throwing and working knives. For knives subject to intense use and that must withstand bending and rough handling, 54SiCr6 steel offers the advantage of high strength and wear resistance.

The knife-making process for this steel is similar to that of swords, with the blade typically hardened to a higher degree to ensure lasting sharpness. Throwing knives made from 54SiCr6 particularly benefit from the steel’s flexibility and impact absorption, minimizing the risk of breaking or deforming upon impact.
